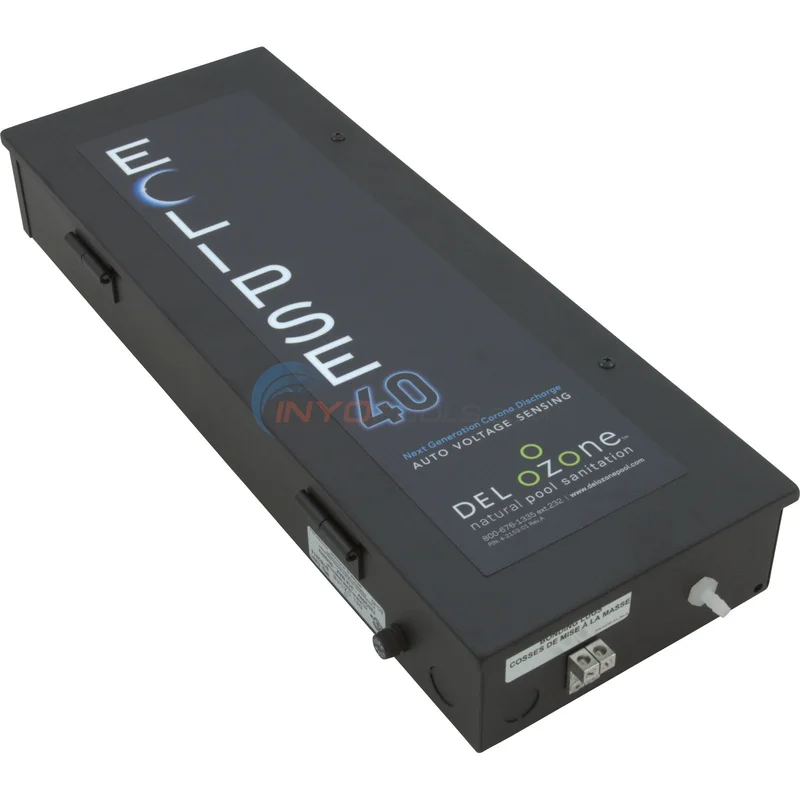

Del Ozone 100 (formerly Eclipse 4 EC-40) Corona Discharge Ozonator Only Universal Voltage

• Corona Discharge ozone generators produce far more ozone than comparably sized UV ozone generators. The Del ECLIPSE line of CD ozone generators produce up to 3 times the concentration of ozone produced by a UV generator. The ECLIPSE units produce ozone concentrations reaching 1,350ppmwhile UV generators top at about 550ppm.

  The Del ECLIPSE 1-4 units are for in-ground pools with water capacities from 7,000 – 25,000 gallons (ECLIPSE-1) 15,000 50,000 gallons (ECLIPSE-2) and 25,000 – 100,000 gallons (ECLIPSE-4). The numbers vary depending on whether you choose the Del Eclipse as your primary sanitizer or as your secondary sanitizer. The more ozone you have the less chemicals you will require. These units install easily into new or existing pools.

  The ECLIPSE units are designed for installation with an adjustable injector manifold(not included)plumbed into the main return line after all other pool equipment as shown below. The Del ECLIPSE will operate in unison with the pool’s main time clock.

  Dispersion method: Plumbs into swimming pool return line; injects ozone through aventuriinjector (included) when the swimming pool circulation system operates.

  Ozone Output:

  ECLIPSE-1: 15scfh; 450ppm; 0.3gr/hr

  ECLIPSE-2: 15scfh; 700ppm; 0.5gr/hr

  ECLIPSE-4: 15scfh; 1,350ppm; 1.0gr/hr
