Description

Current Impeller Number is2921623045IMPELLER 100 / 8 mm3/8″ 5VPPE GF30 FOR A91-I/BADU Pro-I E

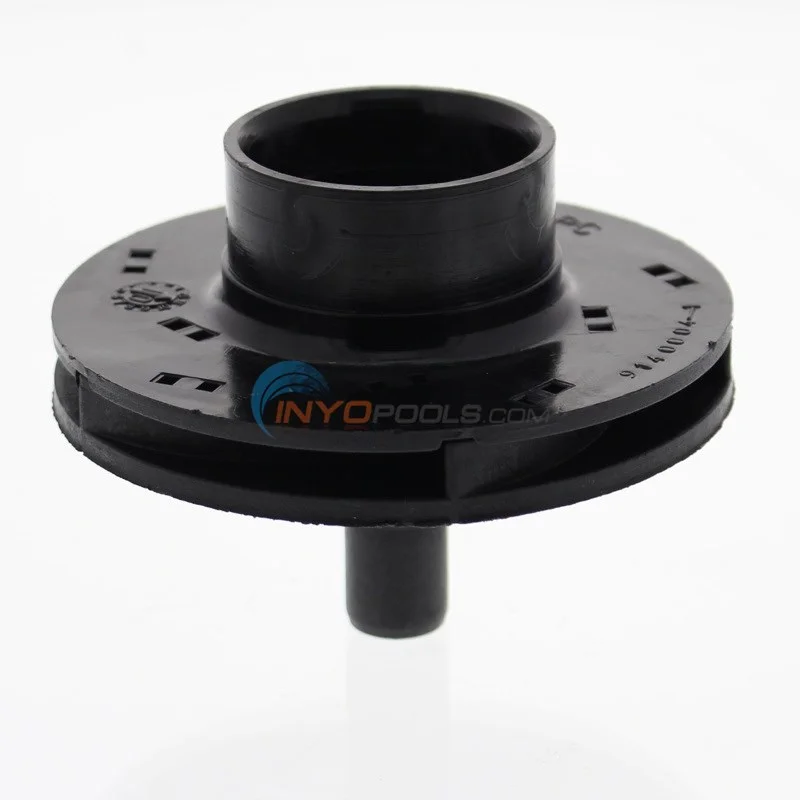

INYO # 5140-22 SPECK # 2921623032 GENERAL DESCRIPTION: THIS IS THE IMPELLER ON THE SPECK E91-I PUMP. MATERIAL: IMPELLER BODY: BLACK PLASTIC IMPELLER SHAFT: BLACK PLASTIC BOTH THE FRONT AND BACK OF THE IMPELLER HAVE SMALL RECTANGULAR NOTCHES CUT OUT OF THE PLASTIC, THESE ARE ABOUT 1/4″ X 1/8″ CLOSED FACE OR OPEN IMPELLER: CLOSED FACE NUMBER OF VANES 5 OUTSIDE DIAMETER: 4″ (A) THICKNESS: 17/32″ (OUTSIDE THICKNESS AT OUTSIDE EDGE) (B) THICKNESS: 1/4″ (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-1/16″ (FROM END OF SHAFT TO FRONT ON INTAKE) INLET INSIDE DIAMETER: 1-11/16″ INLET OUTSIDE DIAMETER: 1-7/8″ INLET EXTENDS ABOUT 1″ FROM THE IMPELLER FACE SHAFT LENGTH: 1-7/16″ SHAFT OUTSIDE DIAMETER: 3/4″ (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: “9140004” IS MOLDED ONTO THE FRONT OF THE IMPELLER
