Description

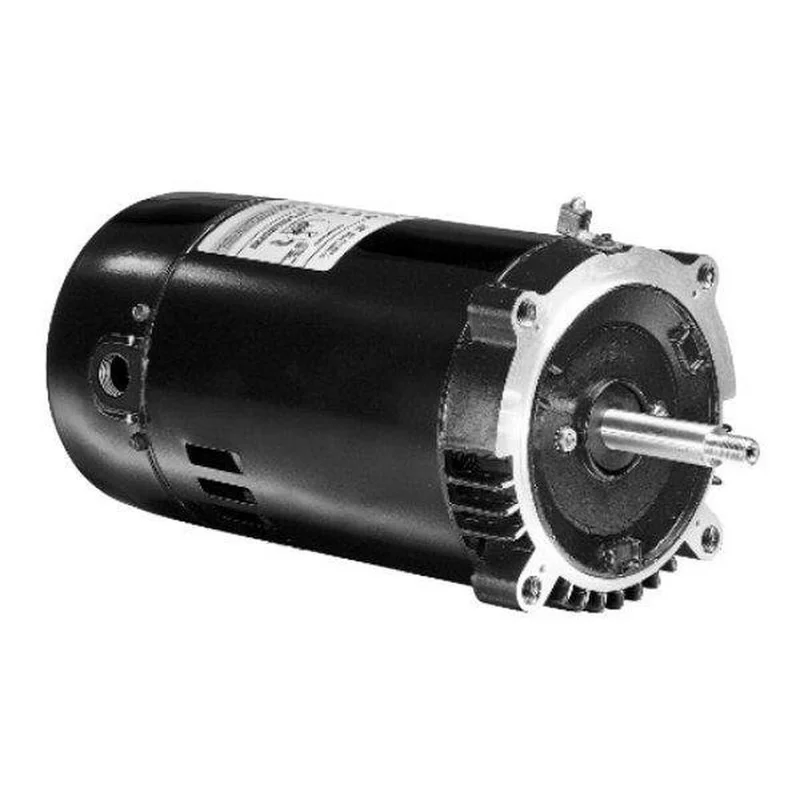

The U.S. Motors Emerson ASB128 C-Flange Single Speed 1HP Full Rated 56J Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings.

• Two Compartment
• Shaft Threads – 7/16-20 UNF-2A
• 50C Ambient
• 1081 Design
• Continuous Duty
• Class B Insulated
• Open Dripproof
• 300 Series Stainless Steel Shaft
• Thermally Protected
• Voltage Selection Device (Dual Voltage Only)
• Optimized internal airflow design minimizes heat and moisture buildup inside the motor
• Internal bearing cover protects the drive/pump end ball bearing from water and debris that may occur inside of the motor
• Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger

Installation Instructions:

• Ensure the pool motor is compatible with your pool pump.
• Turn pump power off during replacement.
• Check voltage requirements on your current setup.
• Always replace the mechanical pump seal. It’s recommended to replace all gaskets when replacing the motor.
• Turn on the pump to test for leaks and pump operation.
• Please reference additional installation instructions in owner’s manual in Guides and Documentation section below.
• Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
